Troubleshooting in paradise IPSEC tunnels rules section not found

Hello,
I’m trying to solve troubleshooting in paradise lab.

Host configuration ok, set gateway on Linux A and set Network configuration on Linux B.
Both hosts can ping the external interface of the opposite firewall, and of course they can ping hosts in their lan.

Once on firewall, I have enabled both tunnel on Firewall A and Firewall B. Checked configuration of phase 2, lan configuration of the other sides are correct.

Now, I would like to check Firewall IPSEC rules, if there is any rules that is blocking ping from linux a and viceversa.

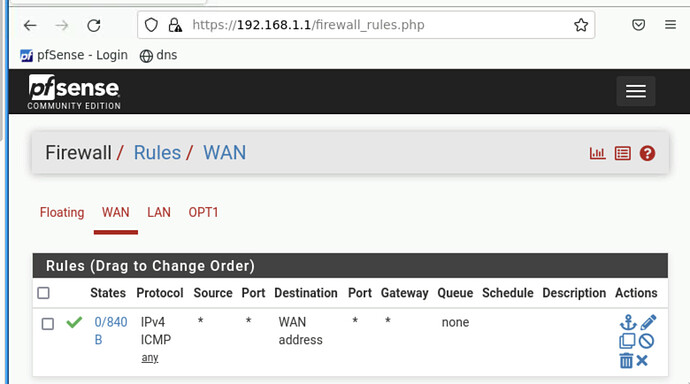

When I click on Firewall, Rules there is not the “ipsec” tab, as mentioned in the previous lab “firewall basics”.

Here some screenshots:




this what I see in “vpn Basic lab” that to double check:

Could you kindly help me please,
thank you
all the best

I just launched the lab and I see the IPSec in the Firewall Rules:

Once I …

1.) Fix IP on Browser-B
2.) Fix IP on Linux-B
3.) Fix IP on Linux-A
4.) Add A record for Browser-B in DNS server
5.) Bring up VPN tunnel (nothing to fix, just bring it up)

I can ping across by IP and name…

Hello
I tried again, without resolution.
I followed your lists:
1.) Fix IP on Browser-B

2.) Fix IP on Linux-B

3.) Fix IP on Linux-A

4.) Add A record for Browser-B in DNS server

5.) Bring up VPN tunnel (nothing to fix, just bring it up)

but I still can’t ping across networks


on my pfsenses I can’t still see neither ipsec rules pages nor interfaces about vpn

maybe it could helps

all the best

Hello @JosephWhite any updates?
I would like to earn the credly cert.

All the best SLVS

I am not able to replicate the screen shots you show ( where the IPSec firewall rules are missing). There is nothing to fix on the firewalls except to go to Status > IPSec and bring up the tunnel.

If you would like to screen share at some point I would love to observe.

Hello Joseph, I Have tried again without success.
Would you like to participate to screen share?
All the best

Hello Josh , we probably have different hours shift, so I’m trying to charge some rec about the lab made by me. This time with a little modification, but I want to ensure you, that It doesnt’ work with the following correct solution neither:

I will send the retransfer link as soon as it will be generated. all the best
